İnca HDMI KVM Extender IEX-120, 120m 4K @30Hz over Cat5e/Cat6/Cat6e/Cat7, IR Return Channel, USB Keyboard & Mouse, Loop Out, Plug & Play, RJ45 Ethernet, Local HDMI Out, 1080p - Transmitter + Receiver

inca IEX-120 - the professional HDMI KVM extender for long distances: The inca IEX-120 reliably extends HDMI signals including USB HID (keyboard/mouse) and IR remote control point-to-point via a single twisted pair cable. 4K@30Hz with backward compatible modes up to 1080p/720p/576p/480p ensures clean image with TMDS data rate up to 10.2Gbps (3×3.4Gbps) and 340MHz bandwidth. Range up to 120m over Cat5e/Cat6/Cat6e/Cat7; ideal for server rooms, digital signage, conference and control environments where the player is safely outsourced. The inca IEX-120 offers a local HDMI loop-out on the transmitter for parallel control at the source location as well as standard-compliant HDMI cable lengths up to 10 m (AWG26) at input and output. Full KVM function: the inca IEX-120 transmits mouse and keyboard as USB HID driverless, plug & play under Windows, macOS, Linux and embedded systems. Infrared pass-through allows the player to operate from the remote monitor location. Robust metal housing, compact dimensions (approx. 95 × 107 × 28 mm) with mounting eyelets and stable 5V supply; typical current requirement TX 350mA / RX 200mA. The inca IEX-120 supports computers, Blu-ray players, set-top boxes, surveillance cameras as well as TV, monitor and projector via RJ45 cabling - efficient, low-maintenance and without software. Features HDMI KVM extender 4K@30Hz, compatible with 1080p/720p/576p/480p transmission distance up to 120m via Cat5e/Cat6/Cat6e/Cat7 (P2P) USB HID for keyboard/mouse, driverless (plug & play) IR return channel for remote control throughput local HDMI loop-out on Transmitter TMDS Up to 10.2 Gbps, bandwidth 340 MHz HDMI cable length Input/output each up to 10 m (AWG26) Power supply: 5 V/1 A; typ. TX 350 mA, RX 200 mA. Dimensions per device approx. 95 × 107 × 28 mm; Weight of each approx. 248 g. Robust metal housing with mounting eyelets, RJ45 connections. Box contents: transmitter, receiver, power supplies, cable (depending on kit), manual model number several times in the text: inca IEX-120

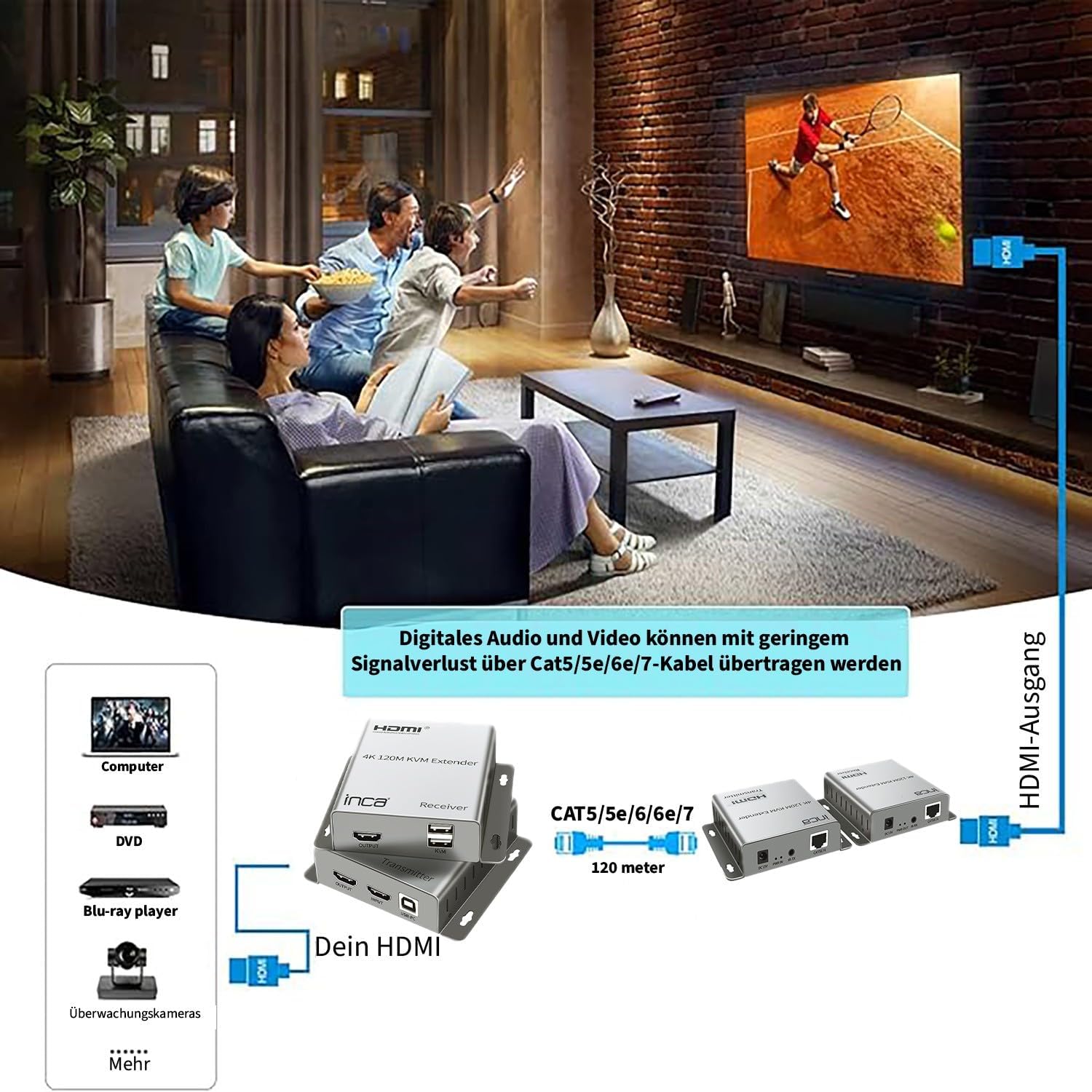

• 4K@30HZ UP TO 120M VIA CAT CABLE - inca IEX-120 transmits HDMI in 4K@30Hz point-to-point over Cat5e/Cat6/Cat6e/Cat7 up to 120m; backward compatible to 1080p/720p/576p/480p. TMDS data rate 10.2 Gbps (3 × 3.4 Gbps) and 340 MHz bandwidth ensure stable image quality. Ideal for professional setups that require a long range HDMI KVM extender, RJ45 cabling and high signal fidelity.
• USB KVM keyboard/mouse, driverless - USB HID for keyboard and mouse is transmitted transparently between transmitter and receiver; plug & play without software under Windows, macOS, Linux and embedded systems. The inca IEX-120 enables low-latency control at the remote workstation – perfect for server rooms, control rooms, production, PoS and digital signage where a reliable HDMI KVM extender is required.
• Local HDMI loop-out on the transmitter - Check source device locally in parallel and send it to the remote display at the same time. The loop-out of the inca IEX-120 simplifies commissioning, troubleshooting and monitoring; input/output supports up to 10 m HDMI cable length (AWG26). This means that even in complex installations, the signal guidance remains clear without additional splitters.

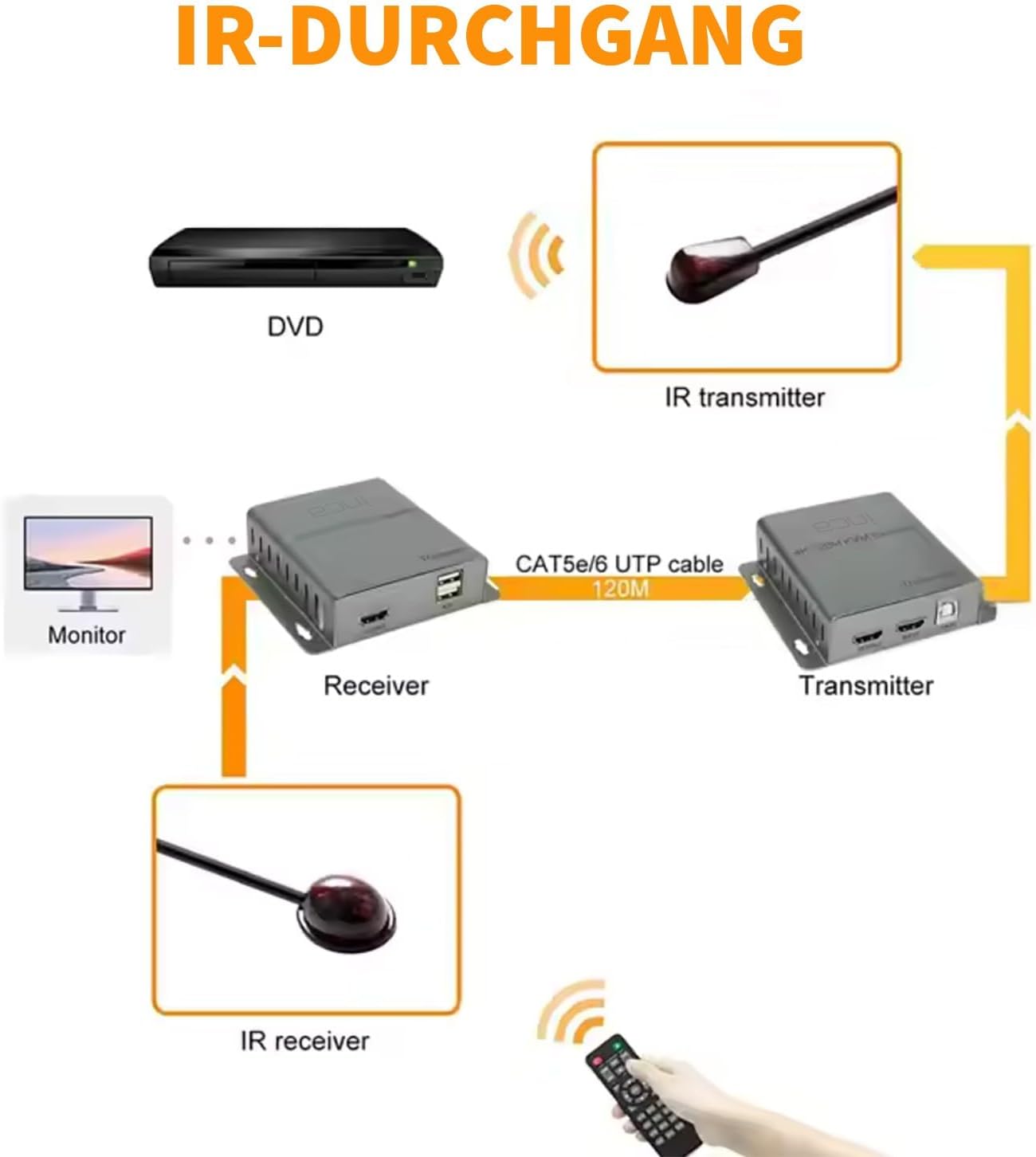

• IR return channel for remote controls: Built-in IR pass-through allows the player to be operated on the transmitter from the remote location. The inca IEX-120 brings full device access despite distance; ideal for media playback, presentation rooms or AV racks where the hardware is safely stored. Combined with USB KVM, a complete remote control solution is created.
• Robust metal housing and pro power supply - Compact design 95 x 107 x 28 mm, per device approx. 248 g, metal housing with mounting eyelets for rack/wall. Power supplies 5V/1A; typical current requirement TX 350mA, RX 200mA. The inca IEX-120 is designed for continuous operation and provides a fail-safe, low-maintenance point-to-point connection via RJ45 infrastructure.
• Wide compatibility and uses - HDTV formats 4K/1080p/720p/576p/480p; works with PCs, workstations, Blu-ray players, set-top boxes, NVR/DVR, monitor, TV, projector. The inca IEX-120 is supplied as a set (transmitter + receiver, power supplies, manual) and addresses professional applications such as data center, production, retail signage, education and control rooms – reliable, scalable and installation-friendly.
