GOOACC 6 Pack Automotive Relay Harness Set 5-Pin 30/40A 12V SPDT with Interlocking Relay Socket and Harnesses,2 Years Warranty

GOOACC 12V 5 Pin Relay with Harness Socket Relay is an electrical control device that usually used in automatic control circuit. The relay in fact is an automatic switch which uses a smaller current to control a larger current. In the circuit, it functions as automatic adjustment, security protection and conversion circuit. Application Compatible with almost all automobiles and devices equipped with a 12 V DC power supply. Wide range of use, can be used in automotive setup, seat warming, vehicle lighting system, car sound system and various other applications. Contact Capacity Normal Switching Capacity (Resistance load) NO (Normal Open) 40A 14VDC NC (Normal Closed) 30A 14VDC Max. Switching Current 40A Max. Switching Voltage 30VDC Max. Switching Power 560W Performance Parameter Contact Material Silver Alloy Contact Resistance 50m¦¸ Max. Operate time (at nominal volt.) 10 msec. Max. Release time (at nominal volt.) 5 msec. Max. Insulation Resistance 100M¦¸ Min. (DC500V) Dielectric Strength Between open contacts AC500V, 5060 Hz 1Min. Between coil and contact AC500V, 5060 Hz 1Min. Vibration Resistance Acceleration of 6g, 10-55Hz Shock Resistance Acceleration of 30g, 10-55Hz Endurance (operations) Mechanical (at 10,800 ops.h) 10,000,000 Electrical (at 900 ops.h) 100,000 Ambient Temperature -40¡ãC ~ +125¡ãC (no condensation)

• HIGH SWITCHING CAPABILITY: 5-Pin SPDT (Single Pole Double Throw) 30/40 A Relay.
• INTERLOCKING RELAY SOCKET: The relay socket harness base is interlocking designed for easy cable management and organization.
• GREAT QUALITY: The durable relay and heavy duty relay socket with 5 wires are made by high-grade materials to ensure superior quality.

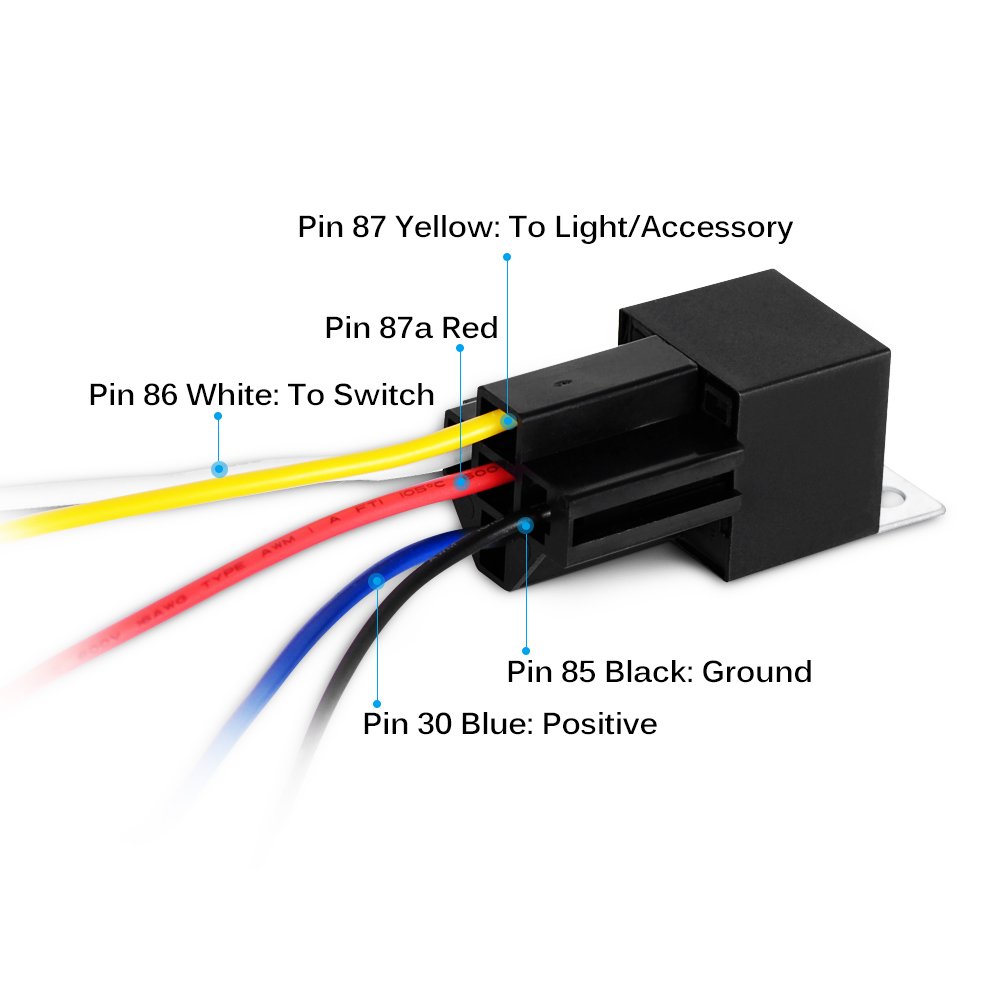

• WIRE INSTRUCTION: Black - (85), Red - (87a), White - (86), Yellow - (87) and Blue - (30).
• PACKAGE INCLUDE: 6 relays & 6 relay sockets with wires
