5 In1 Digital Gauge Cluster Engine RPM Water Temperature Gauge Level Oil Pressure Water Temp Voltage Meter Alarm Function for RV Boat Yacht

Spec: Item Type: Digital Gauge Cluster Material: Stainless steel, ABS, PC Function: Display RPM, oil level, water temperature, voltage and oil pressure Display Range Of Water Temperature Gauge: 40-120℃ Oil Pressure Display Range: 0-145psi Engine Speed: 0-3000RPM, 99999.9 per hour Display Range Of Oil Level Gauge: E-1/2-F Voltage Display Range: 8-32V Working Voltage: DC12V circuit system or DC24V circuit system Working Current: ≤ 100 MA Operating Temperature: - 30℃ -+75 ℃ Storage Temperature: - 40℃ -+85 ℃ Operation Mode: LCD display, stepping motor Protection Grade: IP67, it can work at 1m underwater, and has anti fog function; Technical Support: Post programming technology, driver can be modified as needed to match a variety of analog input signals Installation Dimension: Approx. 190x300mm/7.48x11.81in Application: For engines, generator sets, motor homes, yachts, fishing boats, ships, engineering machinery, agricultural machinery, vehicles, etc. packing list: 1 x Digital Gauge Cluster 2 x Ignition Key 1 x Manual

• Wide Application: The central control 5 gauge panel can be used in engines, generator sets, RV vehicles, yachts, fishing boats, ships, engineering machinery, agricultural machinery, modified vehicles and other fields.

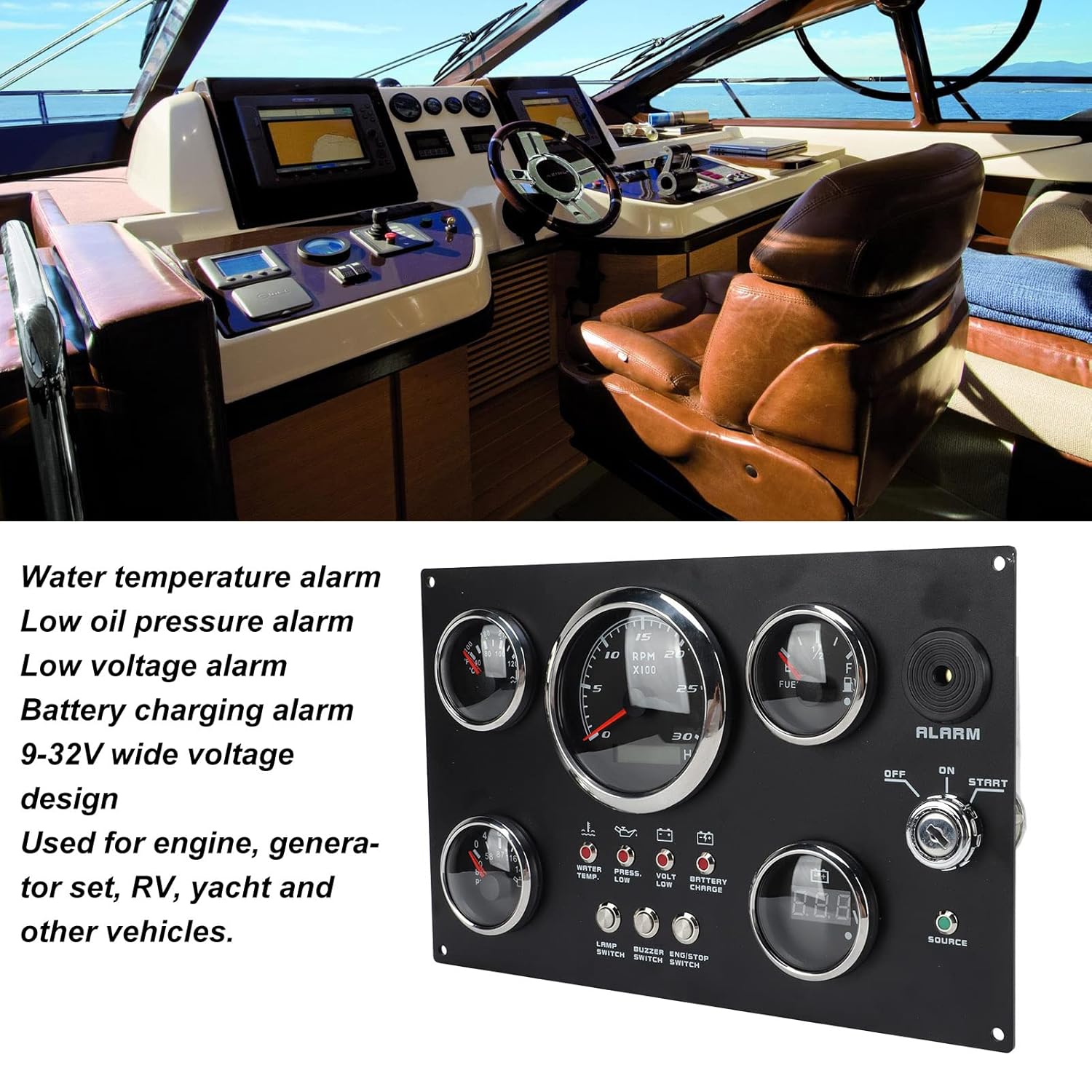

• Timely Alarm Function: The panel is equipped with ignition start indicator, lighting switch, engine stop switch, BUZZER switch, water temperature alarm, low oil pressure alarm, low voltage alarm, and battery charging alarm. You can install this instrument panel in your yacht central control to know the status of the engine at any time through the data.
• IP67 and : Made of 316L stainless steel front cover ring, fogproof curved glass cover and industrial electronic components, which can withstand mechanical shock and vibration without rusting. It can be used normally even in , alkali and humid environments, and is very suitable for sea and various harsh environments.
• 5in1 Gauge: Accurately indicate the engine speed of 0‑3000RPM, the water temperature of the engine water tank is 40‑120 ℃ (100‑250F), the remaining fuel in the fuel tank is E‑1/2‑F, the fuel pressure in the fuel tank is 0‑145PSI (0‑10Bar), and the voltage is 8‑32V.
• Wide Voltage Design: Long term working voltage 9‑32V, low power consumption design, 52mm meter working current ≤ 60mm, 85mm meter working current ≤ 100mA. The harness connector is equipped with clips, which can ensure that the connection between the instrument and the harness is firm, that is, it can still work reliably in situations with strong vibration.
